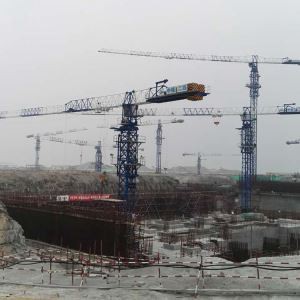

Stationary Flat Top Tower Crane
QTP 7032 Stationary Flat Top Tower Crane
Tower crane has being developed for nearly 100 years. As far as the structural configuration is concerned, luffing jib tower crane and "A" top trolley-jib tower crane are dominant in the market. Flat-top tower crane has great originality of structural configuration, and it is developing fast these years. With no top and no tie bar is the distinct structural feature, that’s why the flat-top tower crane is famous. The flat top tower crane still have more features as follows.
QTP 7032 Stationary Flat Top Tower Crane | |
Max.load: | 12tons / 16tons |
Boom length: | 70m |
Tip load: | 3.2t |
Mast size: | 2x2x3m |
Free standing height: | 60.5m |
Working type: | External climbing type |
Main Specifications
Model | QTP7032 | |
Max Load | 12/16tons | |
Tip Load | 3.2tons | |
Jib Length | 70m | |
Free Standing Height | Stationary | 60.5m |
Mechanisms | Hoisting Speed (m/min) | (a=2) 0-48m/min: 8t; 0-72m/min: 5t 0-96m/min: 3.2t |
Trolleying Speed (m/min) | 0-65m/min | |
Slewing Speed (r/min) | 0~0.6r/min | |
Power | Hoisting (KW) | 75KW |
Trolleying (KW) | 9KW | |
Slewing (KW) | 2*9KW | |
Warranty Policy
1. The warranty period will begin from the date when the product leave our factory.
2. The warranty period for hoisting mechanism, slewing mechanism, trolling mechanism, traveling mechanism and hydraulic telescoping system and motors, etc. is 12 months.
3. The cable, wire rope and brake disc, various limitation etc. are easy-worn parts, whose warranty period are 3 months.
4. The damage or deficit of steel structure due to production will be born by the manufacturer.
5. All the warranty items above come to effect when the product be under normal operation. If the damage due to inadequate operation, unstable power supply, overload, fire, earthquake and other Force Majeure, which are outside of the warranty scope, not born by the manufacturer.
ABOUT US
The company has always been based on the principle of good faith, abiding by the contract and keeping its credibility, and is dedicated to serving customers and meeting all reasonable requirements put forward by customers. "Quality assurance, professional technology, prompt service" is our permanent commitment to our customers.
The company's product range is complete, reliable quality, reasonable price and thoughtful after-sales service. Can also design various non-standard electric hoists and non-standard cranes according to user requirements. We hope that our company's products will become your ideal choice.
