8 Tons Flat Top Tower Crane
QTP 6015-8 Tons Flat Top Tower Crane
Unlike common attached tower cranes, internal climbing tower cranes are installed inside the building (ad hoc rooms such as elevator shafts or stairwells). The construction surface is round. This is particularly important in urban construction with high building density. Because the horizontal tower hoisted the heavy arm across the block, it was easy to collide with buildings, electric wires, water pipes, etc., which caused accidents and caused danger.
QTP 6015-8 tons Flat Top Tower Crane | |
Max.load: | 8tons |
Boom length: | 60m |
Tip load: | 1.5t |

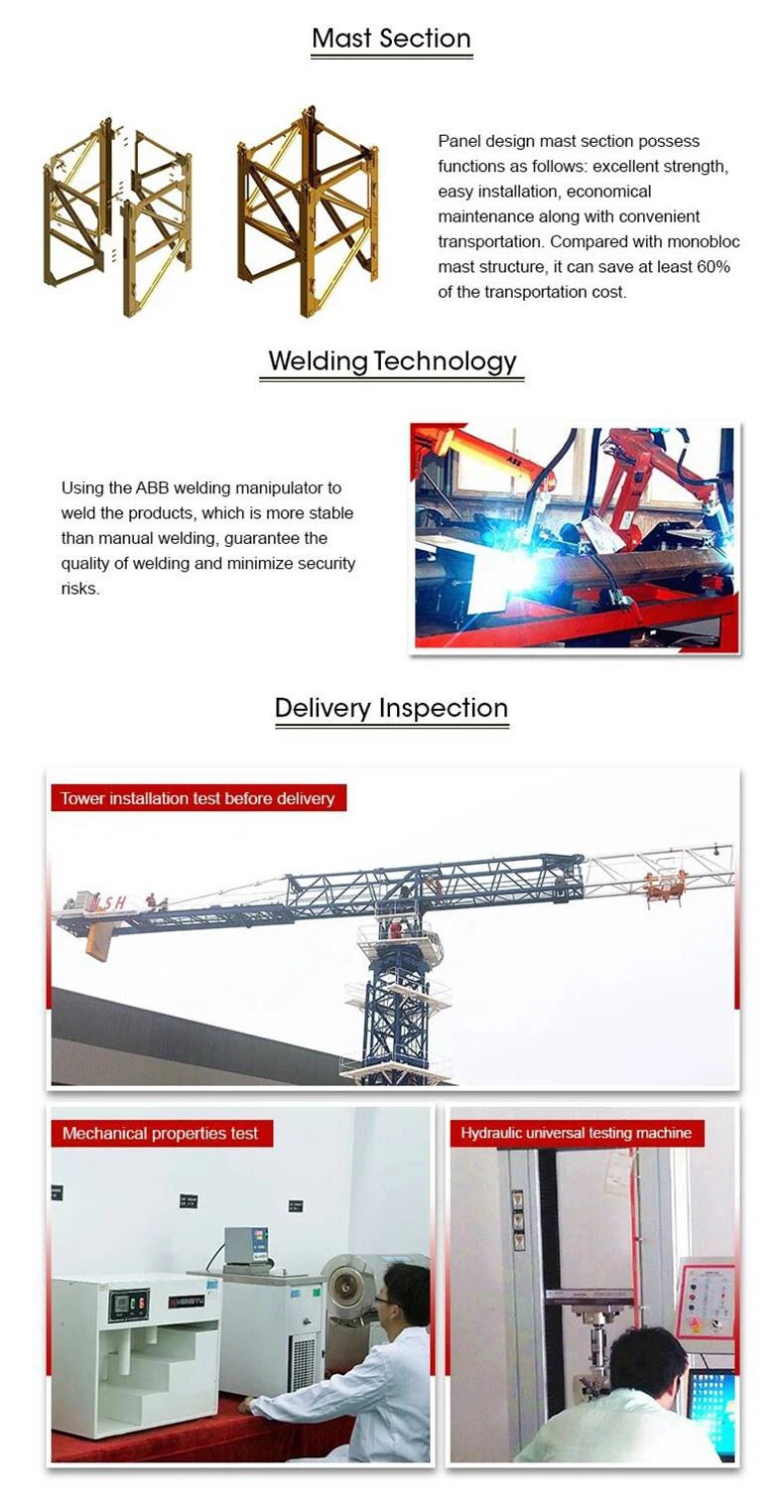

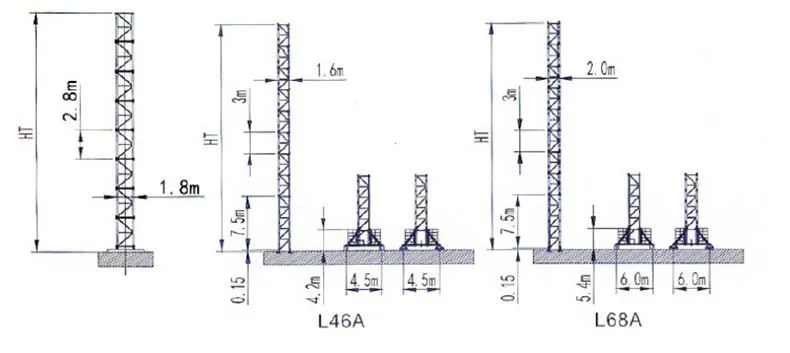

Mast size: | 1.6x1.6x3m/ 2x2x3m |
Free standing height: | 44.5/ 60.5m |
Working type: | External climbing type Traveling type Inner Climbing type |

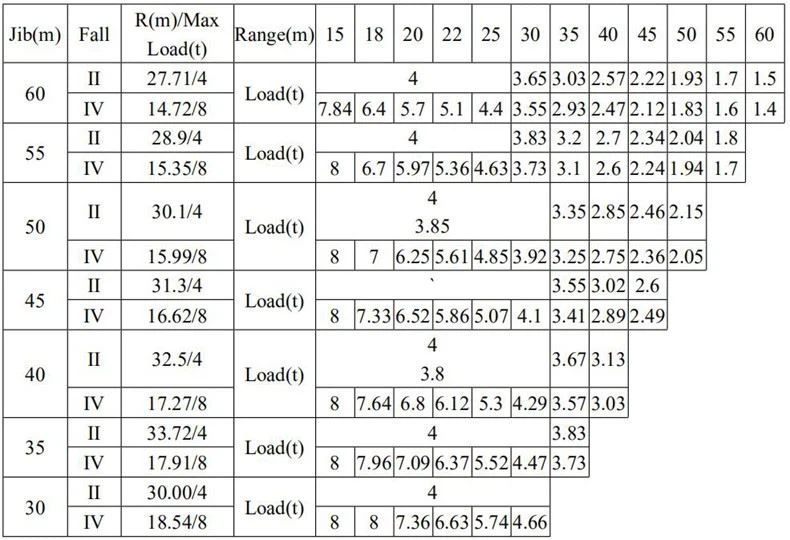

Main Specifications
Model | QTP6015 | |
Max Load | 8tons | |
Tip Load | 1.5tons | |
Jib Length | 60m | |
Free Standing Height | Stationary | 45m |
Mechanisms | Hoisting Speed (m/min) | (a=2) 0-40m/min: 4t; 0-80m/min: 2t |
Trolleying Speed (m/min) | 60/30/9.5m/min | |
Slewing Speed (r/min) | 0~0.6r/min | |
Power | Hoisting (KW) | 30KW |
Trolleying (KW) | 5/3.7/1.1KW | |
Slewing (KW) | 2*3.7KW | |
Company Culture
Company vision: to create a first-class product build hundred years of enterprise.
Company mission: do large-scale do fine products do strong power.
Enterprise tenet: let the enterprise development make the customer satisfied Make employees rich and society harmonious.
Enterprise spirit: integrity, dedication, exploits, innovation.
