16 Tons Flat Top Tower Crane

QTP 7032-16 Tons Flat Top Tower Crane

16tons Tower Crane QTP 7032 with max load of 16tons, Boom length of 70m and tip load 3.2t. Mast: 2*2*3m

Freestanding height of 60.5m

Main Specifications

Application Software

Use three-dimensional design software PRO-E to design and adjust, compared with traditional design software CAD, PRO-E can help the tower crane reach a higher coordination state, thus ensure the perfect performance of the tower crane.

Use world top force calculation software ANSYS to analyses tower crane structure safety. By calculating the force of each main point, the tower crane safety is guaranteed accordingly, this software is definitely at the top level in Chinese tower crane field.

Tooling Application

All of the steel structure parts are made by standard model tooling to guarantee the top quality of Hongsheng.

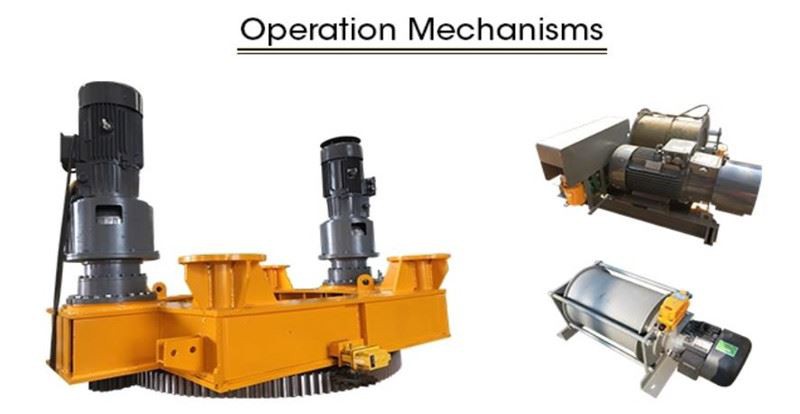

Operation Mechanism

Various mechanisms provided for diversified requirement. All these mechanisms are featured as wide speed range, starting and breaking stably, accurate location, small impact and easy maintenance.

Inverter Integration Systems

We adopt the advanced inverter integration system, which integrates the hoisting ,slewing and trolleying control in one electrical cabin. In this way, it will have less failure rate, also easy to maintenance.

Our inverter integration system also has following advantages.

1. Brake failure protection

2. It can reduce the twist of standard mast section so as to reduce the probability of tightening screw loosening, making the tower crane safer and more reliable, improving the life of standard section and reducing safety accidents.

3. Enables the tower crane boom to start and brake smoothly.

4. Perfect weight and load moment protection

5. Constant power can greatly improve the working efficiency of tower crane

6. Anti-sway functiion: It can avoid the damage caused by the sway of the goods

7. Smooth lifting function: There is no need for the operator to pre-tensioning the wire rope. It can be lifted at full speed. The inverter will automatically reduce the speed when the load increases to tensify the wire rope and then accelerate the lifting.

8. Ant speed operation (super low speed full load operation)

9. When the hook or rope of the crane was caught when it was lifted , the inverter can output the alarm signal and give shutdown protection to avoid safety accidents.
