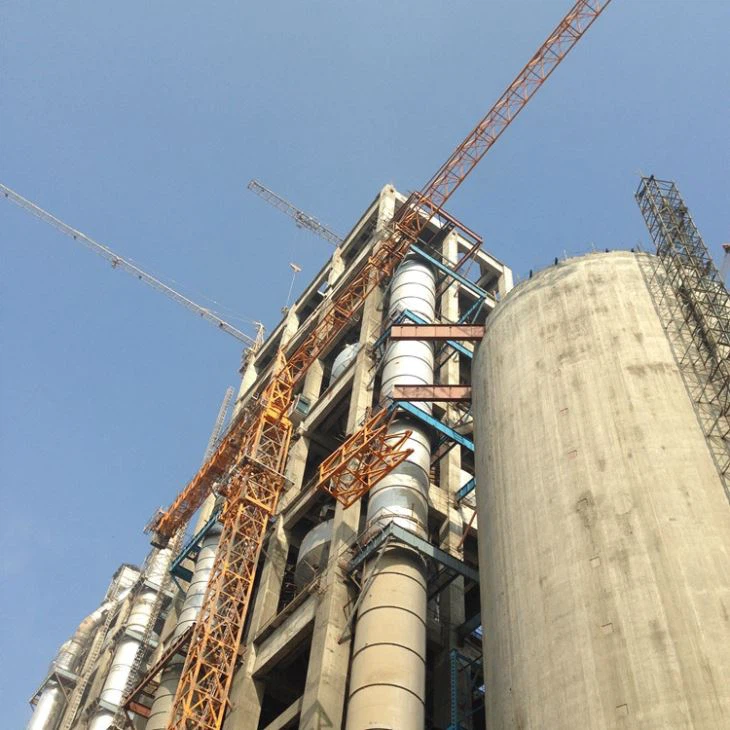

25 tons Hammerhead Tower Crane (2)

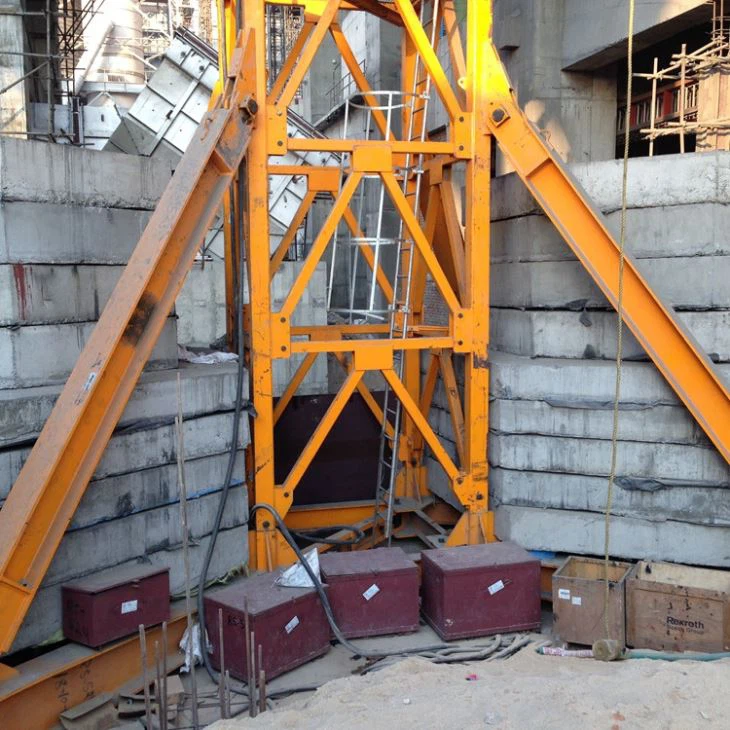

25 tons Hammerhead Tower Crane

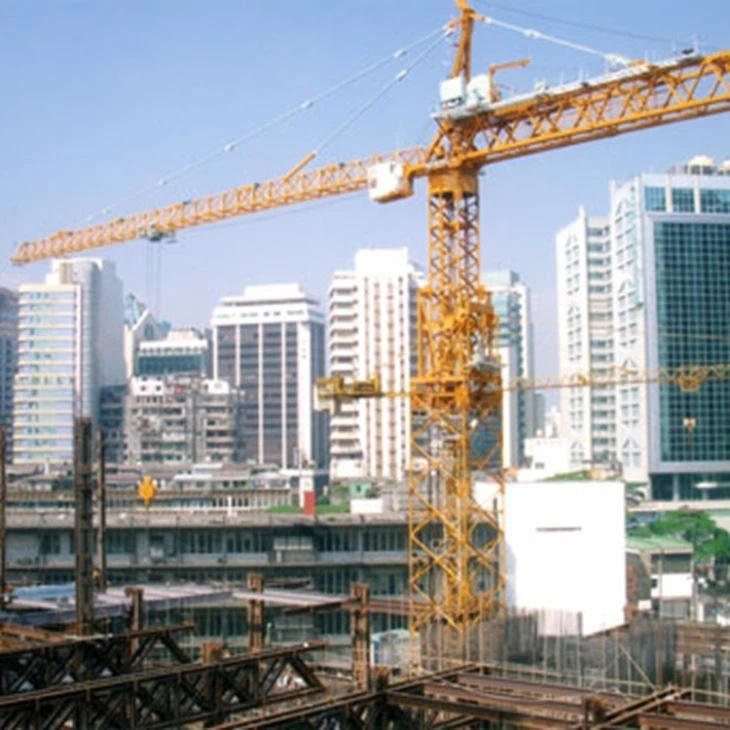

32 tons Hammerhead Tower Crane

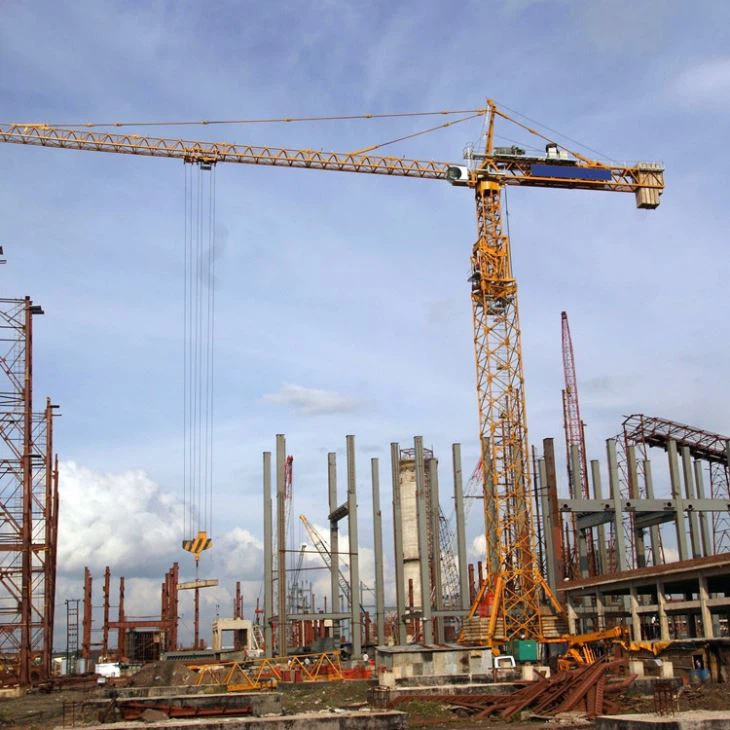

M900-32 tons Hammerhead Tower Crane

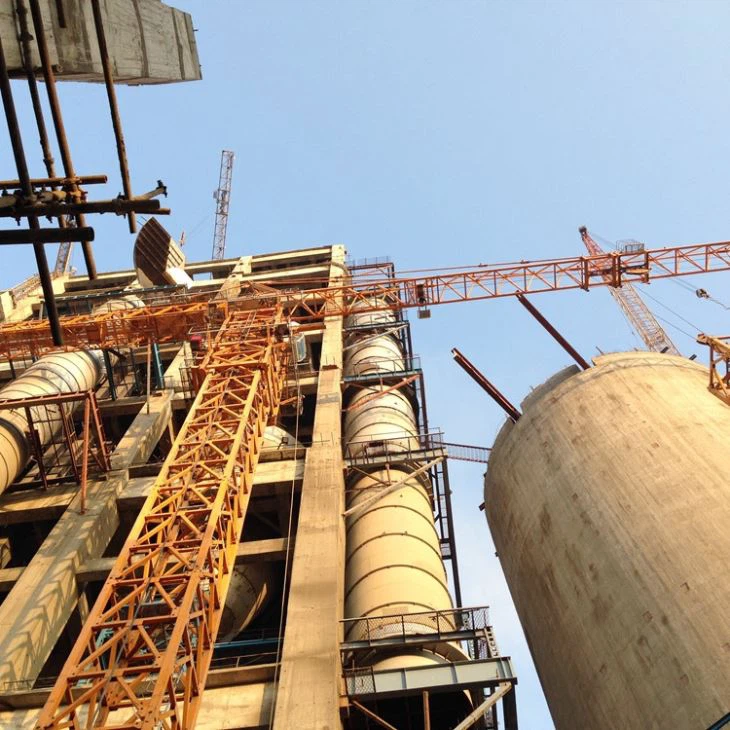

QTZ7052-25 tons Hammerhead Tower Crane

50 Tons Hammerhead Tower Crane

Max.load: 50tons
Boom length: 70m
Tip load: 9t
Mast size: 4x4x5.78m
Free standing height: 89.4m

Send Inquiry

Product Introduction

M900-50 tons Hammerhead Tower Crane

Hammerhead Tower Crane M900-50t
Max.load:	50tons
Boom length:	70m
Tip load:	9t
Mast size:	4x4x5.78m
Free standing height:	89.4m
Working type:	External climbing type Traveling type Inner Climbing type

Product details

product

Main Specifications

Model	QTZ900
Max Load	50tons
Tip Load	9tons
Jib Length	70m
Free Standing Height	Stationary	79.5m
Mechanisms	Hoisting Speed (m/min)	(a=2) 0-36m/min: 25t; 0-72m/min: 12.5t (a=4) 0-18m/min: 50t, 0-36m/min: 25t
Trolleying Speed (m/min)	0-66m/min
Slewing Speed (r/min)	0~0.55r/min
Power	Hoisting (KW)	132KW
Trolleying (KW)	24KW
Slewing (KW)	2x18.5KW

Outline dimensions

OUTLINE DIMENSIONS

MAST 4mx4m

MAST 4mx4m

Anchorage

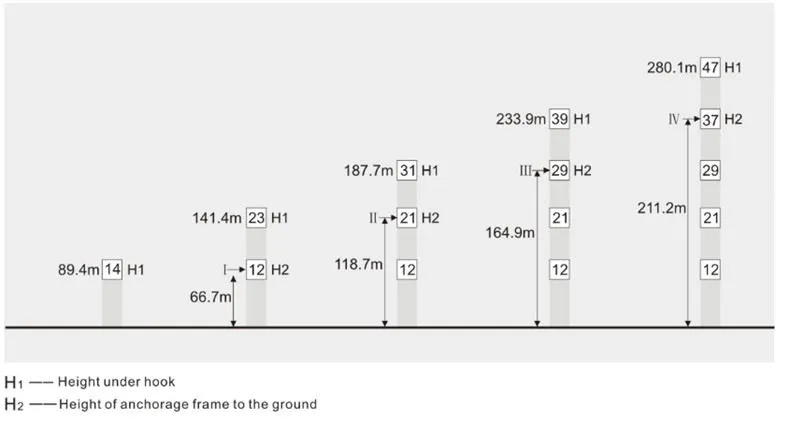

ANCHORAGE

Load Diagrams

Jib (m)	Fall	Range	5.7-19.9	25	28.9	29.3	35	40	45	50	55	60	65	70
(m)
70	IV	Load (t)	50	38	32	31.5	25.1	21.2	17.9	15.3	13.2	11.4	9.9	8.6
II	32	25.6	21.7	18.4	15.8	13.7	11.9	10.4	9.1
Jib (m)	Fall	Range	5.7-21.1	25	30.7	31.2	35	40	45	50	55	60
(m)
60	IV	Load (t)	50	40.9	32	31.5	26.2	23	19.5	16.8	14.5	12.6
II	32	26.7	23.5	20	17.3	15	13.1
Jib (m)	Fall	Range	5.7-21.1	25	30.7	31.2	35	40	45	50
(m)
50	IV	Load (t)	50	40.9	32	31.5	26.2	23	19.5	16.8
II	32	26.7	23.5	20	17.3
Jib (m)	Fall	Range	5.7-21.1	25	30.7	31.2	35	40
(m)
40	IV	Load (t)	50	40.9	32	31.5	26.2	23
II	32	26.7	23.5

Counter-jib ballast

Jib length	Counter-jib	11400kg	10500kg	8000kg	Total (kgs)
70m	24m	5	-	-	57000
60m	24m	4	-	1	53600
50m	24m	3	-	1	42200
40m	24m	1	2	-	32400

Mechanisms

Items	Mechanism	Speed (m/min)	Hoisting Weight (t)	Rope capacity (m)	Motor (kw)
Hoisting	180LVF85	2fall	0-36	16	700M	132
0-54	10.6
0-72	8
4fall	0-18	32
0-27	21.2
0-36	16
6fall	0-12	50
0-18	33
0-24	25
Trolleying	33DVF25	0-65	Frequency control	24
Slewing	55RVF	0-0.55r/min		2x18.5
	Frequency control
Traveling	56TVF	0-34	Frequency control	8X5.2
Power	380V/50HZ 440V/60HZ	Total Power	300KVA

Our advantage

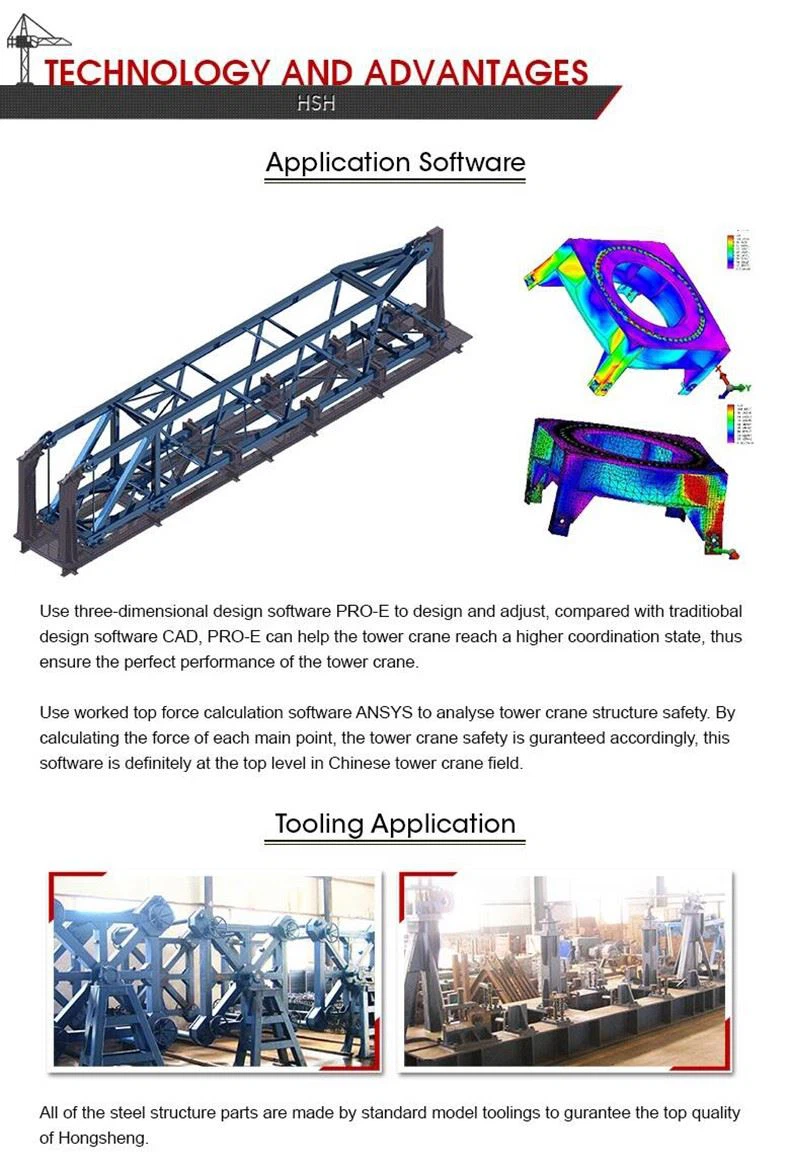

TECHNOLOGY AND ADVANTAGE

SURFACE COATING & MECHANISM

MAST SECTION & WELDING

Packaging and shipping

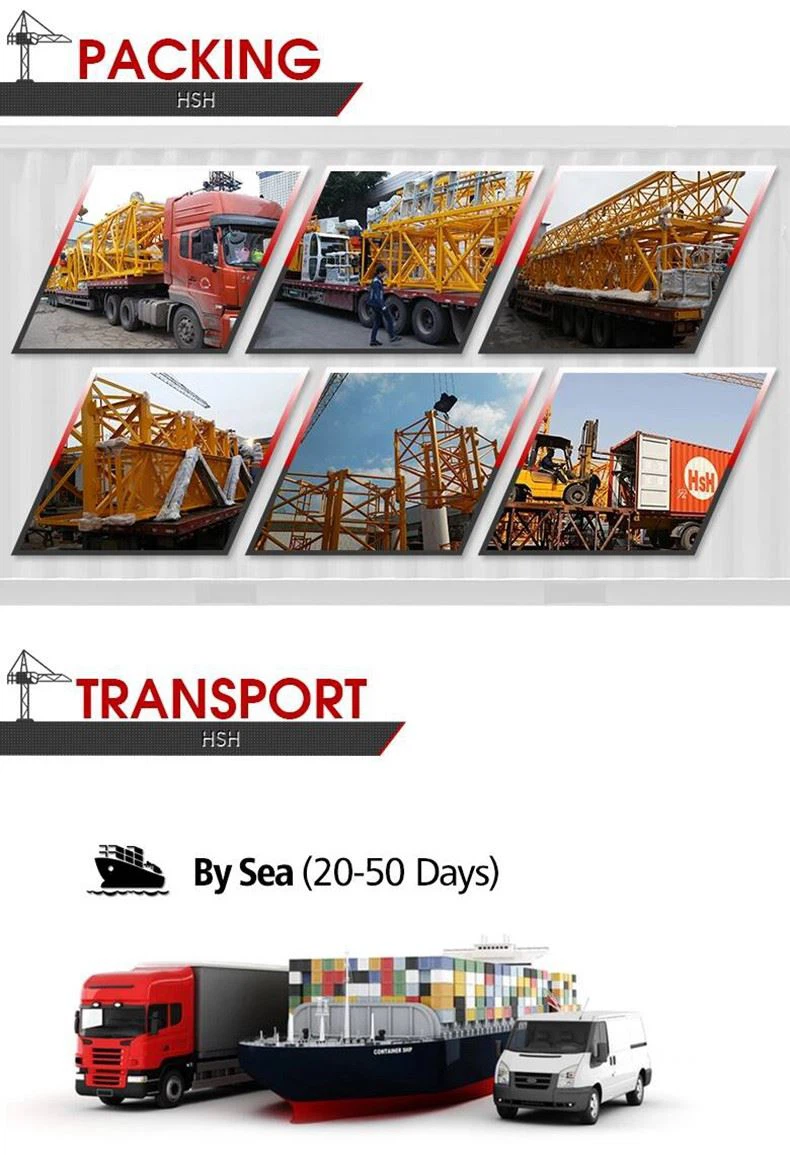

PACKING & TRANSPORTATION

Packaging

1. Before the product leaves the factory, check each part of the product to check whether the product can be used and installed normally.

2. During the product packaging, the special parts such as the crane branch and parts should be separate packaging and special packaging.

3. Packing method: due to the large length and size of tower crane components, we usually use large container shipping method.

4. If you need OEM, ODM services, there are separate product packaging scheme and logo printing standards, please send your scheme and standards in advance please contact us in advance. We can pack the products according to your request.

5. Because the tower crane is a large weight, so we usually choose sea, land and rail transportation.
