Qtz80 (TC5015) Topkit Tower Crane-8t
We hope to bring more cost-effective 8 Tons Hammerhead Tower Crane, Stationary Luffing Tower Crane, External Climbing Hammerhead Tower Crane and provide more thoughtful services to the global market. We believe by maintaining long-term good cooperative relations with customers and pursuing greater benefits, a win-win situation can be achieved. Based on the world, we take the lead in introducing international advanced product design concept, manufacturing technology and quality control process to ensure the reliability of products.

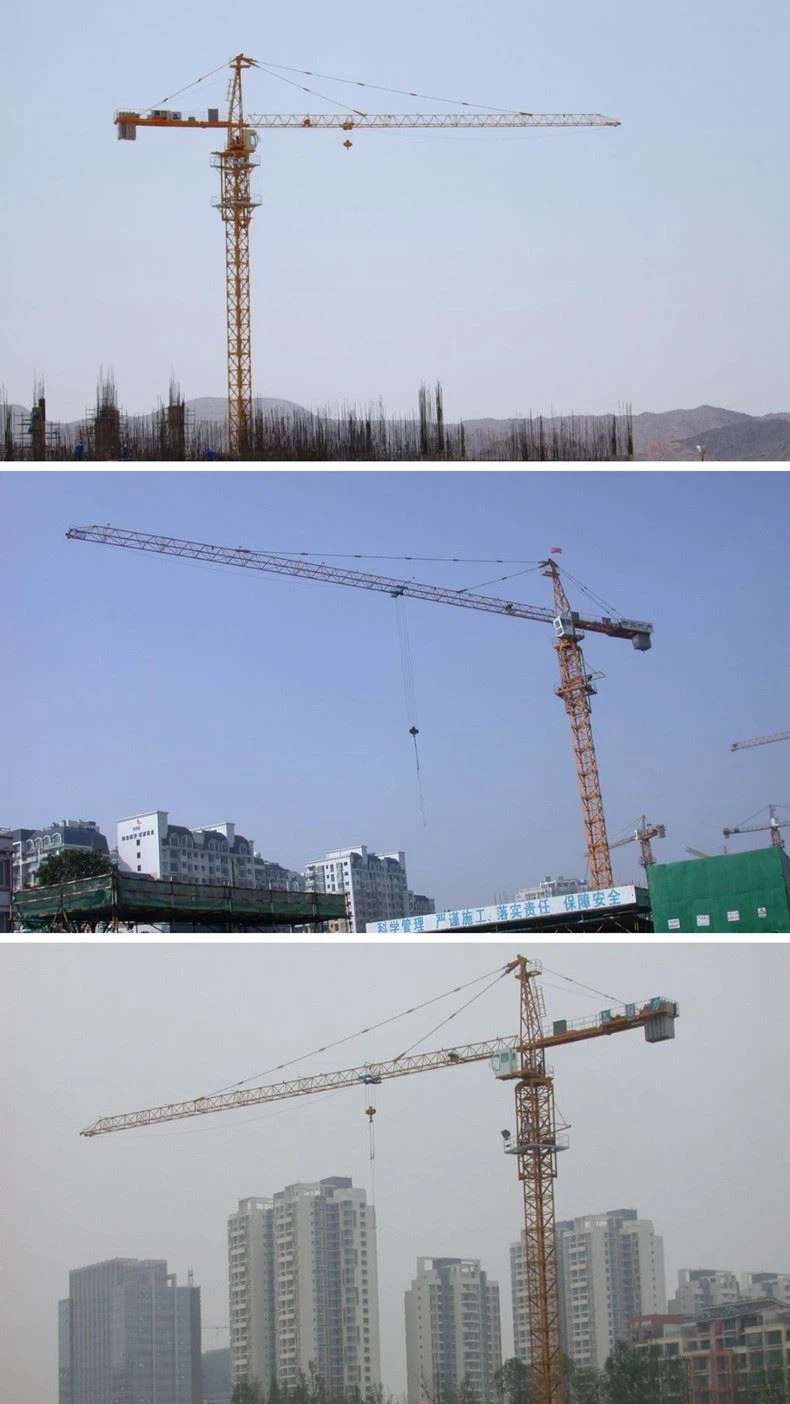

QTZ5015 Tower Crane
QTZ5015 Tower Crane | |
Max.load: | 6tons |
Boom length: | 50m |
Tip load: | 1.5t |
Mast size: | 1.6x1.6x3m |
Free standing height: | 40m |
Working type: | External climbing type |
The function of the tower crane tip is to receive the upper load from the boom drawstring and the balance arm drawstring, and to directly transfer the structure to the tower structure through the rotary tower, turntable, bearing and other structural components. The top of the self-elevating tower has a truncated cone, forward or backward truncated cone, herringbone and diagonal brace.
Tower crane is mainly used in various construction projects for lifting and hoisting of large heavy objects (such as building materials, materials, etc.). In order to enhance the safety performance and service life of the tower crane, our company selects high-quality low alloy plate, quenching to build the tower crane. It is durable, firm and stable, not easy to deform, high toughness and other mechanical characteristics.
Main Specifications
Model | QTZ5015 | |
Max Load | 6tons | |
Tip Load | 1.5tons | |
Jib Length | 50m | |
Free Standing Height | Stationary | 39.8m |
Mechanisms | Hoisting Speed (m/min) | (a=2) 0-40m/min: 3t; 0-80m/min: 1.5t |
Trolleying Speed (m/min) | 0-60m/min | |
Slewing Speed (r/min) | 0~0.7r/min | |
Power | Hoisting (KW) | 24KW |
Trolleying (KW) | 4.5KW | |
Slewing (KW) | 2x4.5KW |
Jib (m) | Fall | Range | 2.5-15.6 | 16 | 20 | 24 | 28 | 29 | 30 | 34 | 38 | 42 | 46 | 50 |
(m) | ||||||||||||||
50 | IV | Load (t) | 6 | 5.83 | 4.53 | 3.68 | 3.07 | 2.95 | 2.83 | 2.44 | 2.13 | 1.88 | 1.67 | 1.5 |
II | 3 | 2.88 | 2.49 | 2.18 | 1.93 | 1.72 | 1.55 | |||||||
Jib (m) | Fall | Range | 2.5-16.2 | 17 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 45 | ||
(m) | ||||||||||||||
45 | IV | Load (t) | 6 | 5.67 | 5.31 | 4.23 | 3.49 | 2.95 | 2.54 | 2.22 | 1.96 | 1.8 | ||
II | 3 | 2.59 | 2.27 | 2.01 | 1.85 |
FAQ
Q: How are you doing?
Our factory covers an area of 120,000 square meters, with a registered capital of 20 million yuan. With a professional technical research and development team, sophisticated production equipment and product testing equipment, we are fully capable of helping you produce the products you want
Q: Do you provide samples?
We can provide product samples for you to test. Samples can be transported by sea, land or air.
Q: Do you have product installation instructions?
Each of our products is equipped with installation instructions. Convenient for you to use the product correctly.
We are well aware that technology is a direct manifestation of the company's hard power and the cornerstone for us to provide better Qtz80 (TC5015) Topkit Tower Crane-8t to customers. According to the market demand, our company gradually expands the sales scale, and is willing to make a contribution to the society with advanced sales strategy, abundant capital and superior quality. We have a sound, perfect, continuous and effective operation of the quality assurance system.
