7030-12 Hammer Head Tower Crane with Ce Certificate
Jib length: 70m
Tip load: 3t
Mast: 2x2x3m
Free standing height: 51.7m
For many years, our company has focused on the manufacture of 32 Tons Hammerhead Tower Crane, External Climbing Hammerhead Tower Crane, 12 Tons Luffing Tower Crane and is one of most competitive suppliers in China. We hope to establish a more rigorous quality system in design, production and service to meet the needs of different markets. Our company has first-class technical standards, a strong technical service platform, and perfect quality management. In the face of the challenges of the new era, we are determined to reform and innovate continuously. We embody the corporate image of taking science and technology as the first place everywhere to meet your requirements with more perfect technology and better service.
QTZ7030 Topkit Tower Crane
Topkit Tower Crane QTZ7030-16t with Max.load of 16tons
Jib length: 70m
Tip load: 3t
Mast: 2x2x3m
Free standing height: 51.7m

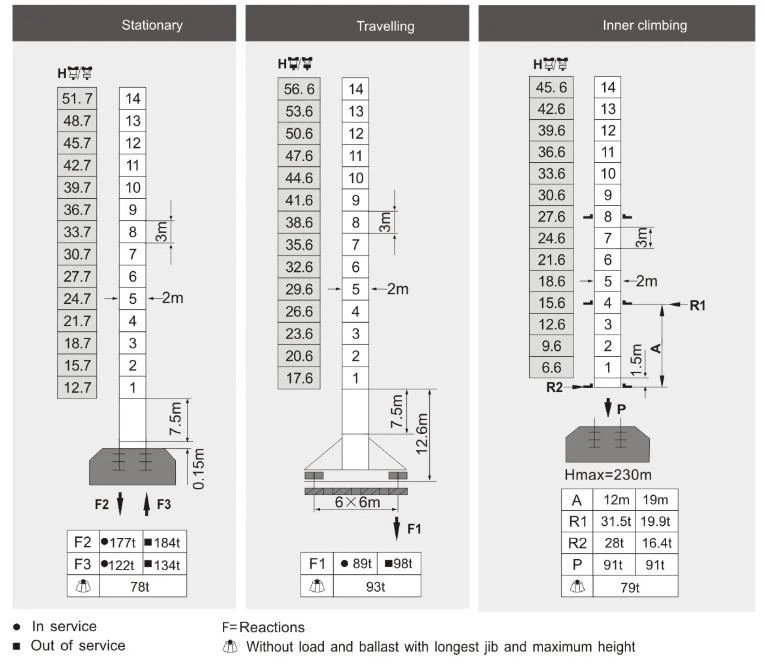

Working type: stationary type, inner climbing type and traveling type.
Main Specifications
Model | QTZ7030 | |
Max Load | 16tons | |
Tip Load | 3tons | |
Jib Length | 70m | |
Free Standing Height | Stationary | 51.7m |
Mechanisms | Hoisting Speed (m/min) | (a=2) 0-45m/min: 8t; 0-90m/min: 4t |
Trolleying Speed (m/min) | 0-65m/min | |
Slewing Speed (r/min) | 0~0.7r/min | |
Power | Hoisting (KW) | 75KW |
Trolleying (KW) | 9KW | |
Slewing (KW) | 2x9KW | |

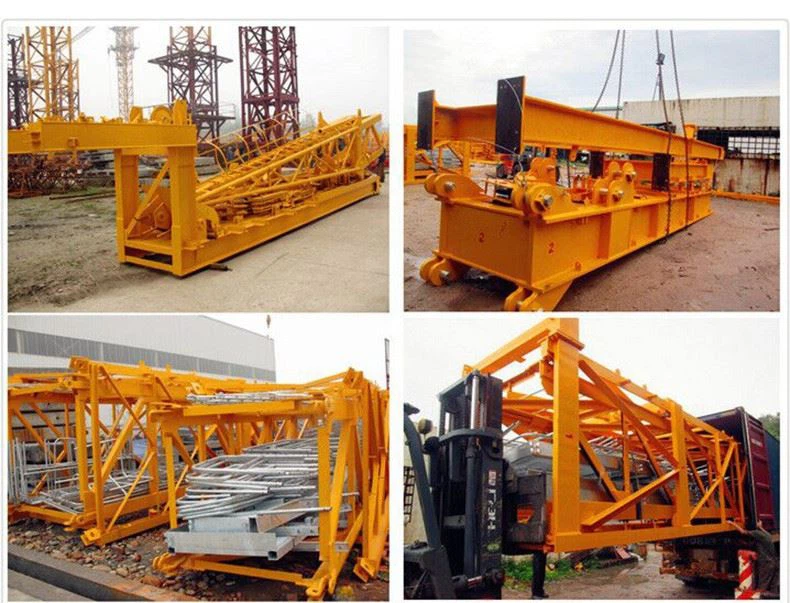

1. Before product packaging, check each part of the product to make sure there are no missing parts. At the same time, for small parts, with iron case or wooden case packaging.
2. During product packaging, in order to prevent product parts in the process of transportation by heavy extrusion deformation, we carry out special protection for each part, especially the support part, effectively avoid deformation. In order to prevent the friction between the parts of the paint, we will use rubber belt in the bottom and then use steel belt binding, and use rubber wrapped iron wire for binding and fixing, as far as possible to reduce the occurrence of paint.
3. For the electrical parts and the mechanisms, we will pack them in wooden cases to protect against moisture.

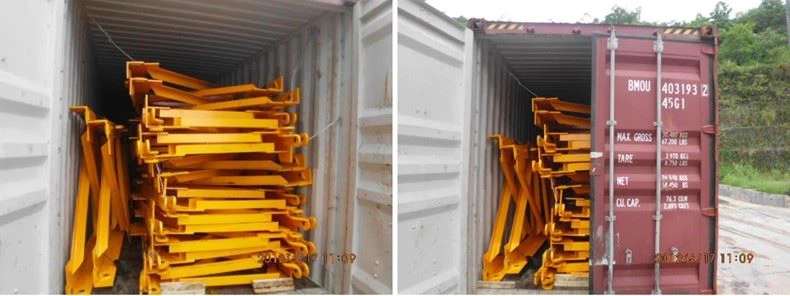

4. Adopt the export shipping method of container.
5. We usually use sea, land and railway transportation.
Based on the concept of innovation, our company has the ability to design and develop 7030-12 Hammer Head Tower Crane with Ce Certificate products and micro-innovation by virtue of meticulous production technology, perfect management mode and quality management system. While satisfying the best user experience and continuously interacting and iterating with users, our company has built a co-creation and win-win ecology with our customers and partners. We are able to also provide you with no cost samples to meet your needs.
